Polypropylene String-Wound Sediment Filters

SP-CW Series

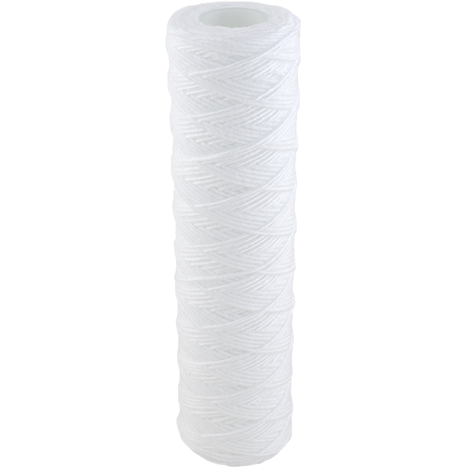

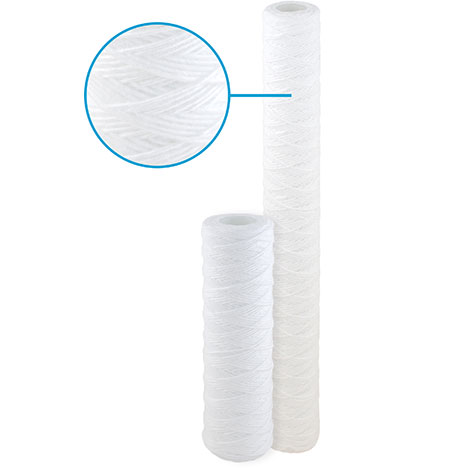

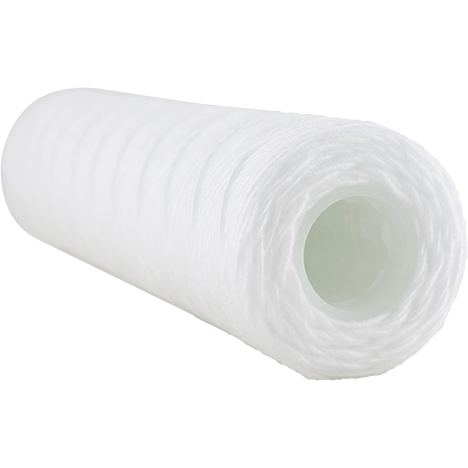

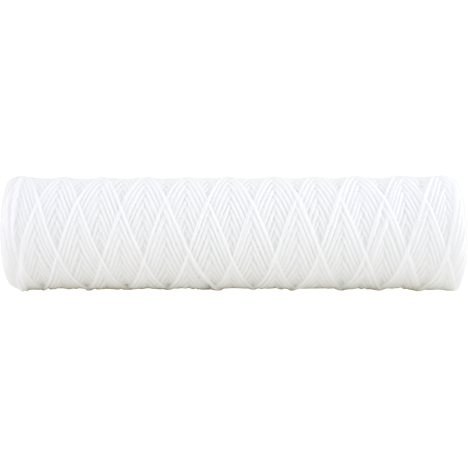

SpiroPure SP-CW series sediment filters are manufactured from polypropylene string-wound filter media. The wound polypropylene string captures and reduces fine sediment, such as sand, rust, silt, and scale particles. The polypropylene cord is wound around a durable polypropylene core for cartridge strength.
  • Reduces fine sediment particles from a variety of water filtration needs, including municipal, well water, and industrial fluids
  • Available in nominal sizes of: 10x2.5, 20x2.5, 30x2.5, 40x2.5, and 50x2.5
  • Available nominal filtration ratings of: 5, 10, 30, 50, and 100 microns
  • Made with polypropylene string-wound filter media
  • Temperature rating of 40°F to 165°F (4.4°C to 73.9°C)
Filter Details Chart
  Model Number Nominal Micron Rating Pressure Drop Temperature Rating Case Quantity Case Dimensions Case Weight

2.5" x 10"

SP-CW0.5
SP-CW1
SP-CW5
SP-CW10
SP-CW20
SP-CW30
SP-CW50
SP-CW100

0.5 micron
1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

<1 psi @ 10 gpm (<0.07 bar @ 38 Lpm)

40°F - 165°F (4.4°C - 73.9°C)

24

15 1/2” x 10 3/4” x 10 1/2”

10 lbs

2.5" x 20"

SP-CW0.5-20
SP-CW1-20
SP-CW5-20
SP-CW10-20
SP-CW20-20
SP-CW30-20
SP-CW50-20
SP-CW100-20



0.5 micron
1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

<1 psi @ 10 gpm (<0.07 bar @ 38 Lpm)

40°F - 165°F (4.4°C - 73.9°C)

20

20 1/4” x 14” x 11”

18 lbs

2.5" x 30"

SP-CW1-30
SP-CW5-30
SP-CW10-30
SP-CW20-30
SP-CW30-30
SP-CW50-30
SP-CW100-30

1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

<1 psi @ 10 gpm (<0.07 bar @ 38 Lpm)

40°F - 165°F (4.4°C - 73.9°C)

20

31” x 13 1/4” x 10”

25 lbs

2.5" x 40"

SP-CW1-40
SP-CW5-40
SP-CW10-40
SP-CW20-40
SP-CW30-40
SP-CW50-40
SP-CW100-40

1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

<1 psi @ 10 gpm (<0.07 bar @ 38 Lpm)

40°F - 165°F (4.4°C - 73.9°C)

20

41” x 13” x 10”

34 lbs

2.5" x 50"

SP-CW5-50

5 micron

<1 psi @ 10 gpm (<0.07 bar @ 38 Lpm)

40°F - 165°F (4.4°C - 73.9°C)

20

50” x 13” x 11”

38 lbs
Cross Reference Chart
Size Rating SpiroPure Hydronix Pentek Culligan
2.5" x 10"

0.5 micron
1 micron
5 micron

10 micron
20 micron
30 micron

50 micron
100 micron

SP-CW0.5
SP-CW1
SP-CW5

SP-CW10
SP-CW20
SP-CW30

SP-CW50
SP-CW100

SWC-25-10-0.5
SWC-25-1001
SWC-25-1005

SWC-25-1010
SWC-25-1020
SWC-25-1030

SWC-25-1050
SWC-25-10100

CW-5 / 155877-43
WP-5 / 155071-43
CW-F / 155186-43

CW-MF / 155187-43
WP-30 / 155072-43
CW-50 / 155214-43

Culligan CW-F Culligan CW-MF
2.5" x 20"

0.5 micron
1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

SP-CW0.5-20
SP-CW1-20
SP-CW5-20
SP-CW10-20
SP-CW20-20
SP-CW30-20
SP-CW50-20
SP-CW100-20

SWC-25-20-0.5
SWC-25-2001
SWC-25-2005
SWC-25-2010
SWC-25-2020
SWC-25-2030
SWC-25-2050
SWC-25-20100

2.5" x 30"

1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

SP-CW1-30
SP-CW5-30
SP-CW10-30
SP-CW20-30
SP-CW30-30
SP-CW50-30
SP-CW100-30

SWC-25-3001
SWC-25-3005
SWC-25-3010
SWC-25-3020
SWC-25-3030
SWC-25-3050
SWC-25-30100

2.5" x 40"

1 micron
5 micron
10 micron
20 micron
30 micron
50 micron
100 micron

SP-CW1-40
SP-CW5-40
SP-CW10-40
SP-CW20-40
SP-CW30-40
SP-CW50-40
SP-CW100-40

SWC-25-4001
SWC-25-4005
SWC-25-4010
SWC-25-4020
SWC-25-4030
SWC-25-4050
SWC-25-40100

2.5" x 50"

5 micron

SP-CW5-50

SWC-25-5005
