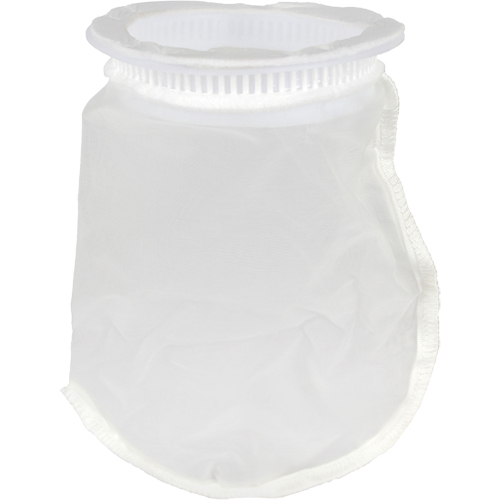

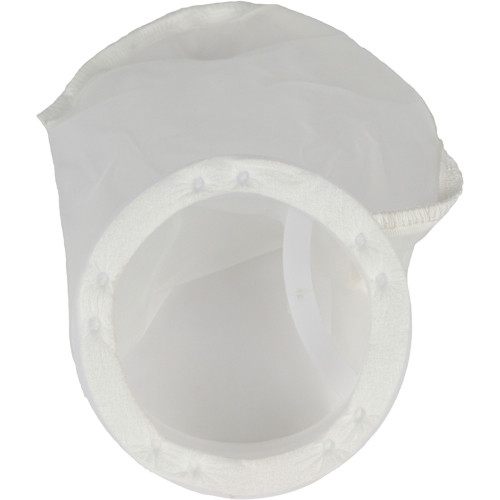

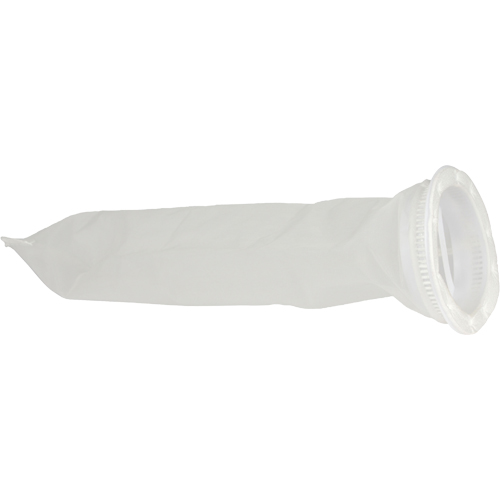

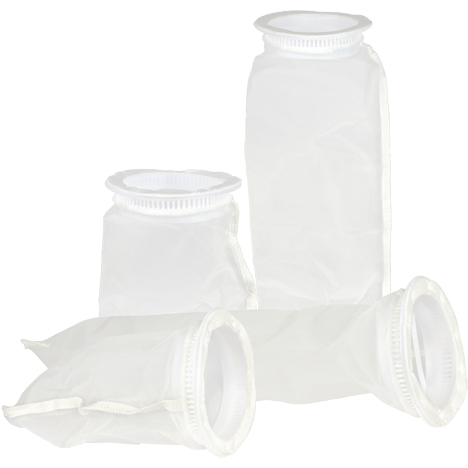

Nylon Monofilament Mesh Liquid Bag Filters

SP-BN Series

The SP-BN Series of liquid bag filters by SpiroPure are designed to fit any 10 or 20 inch standard bag filter housing for a variety of applications. The nylon monofilament mesh provides increased strength and stretch resistance, giving them a high solid retention and flow rate.
  • Filter ideal for corrosive fluids, including organic solvents, oils, acids, and alkalis
  • Available in nominal lengths of: 10” and 20”
  • Available nominal filtration ratings of: 50, 100, 150, 200, and 250 microns
Filter Details Chart
  Model Number Nominal Micron Rating Temperature Rating Case Quantity Case Dimensions Case Weight

10"

SP-BN-410-50
SP-BN-410-100
SP-BN-410-150
SP-BN-410-200
SP-BN-410-250
SP-BN-410-300
SP-BN-410-400
SP-BN-410-600
SP-BN-410-800

50 micron
100 micron
150 micron
200 micron
250 micron
300 micron
400 micron
600 micron
800 micron

< 176°F (80℃)

40

18” x 12” x 10.5”

4 lbs

20"

SP-BN-420-50
SP-BN-420-100
SP-BN-420-150
SP-BN-420-200
SP-BN-420-250
SP-BN-420-300
SP-BN-420-400
SP-BN-420-600
SP-BN-420-800

50 micron
100 micron
150 micron
200 micron
250 micron
300 micron
400 micron
600 micron
800 micron

< 176°F (80℃)

40

17.5” x 14.5” x 11.5”

6 lbs

Cross Reference Chart
Size Rating SpiroPure Pentek

10"

50 micron
100 micron
150 micron
200 micron
250 micron
300 micron
400 micron
600 micron
800 micron

SP-BN-410-50
SP-BN-410-100
SP-BN-410-150
SP-BN-410-200
SP-BN-410-250
SP-BN-410-300
SP-BN-410-400
SP-BN-410-600
SP-BN-410-800

BN-410-50 / 255254-03
BN-410-100 / 255009-03
BN-410-150 / 255010-03
BN-410-200 / 255011-03
BN-410-250 / 255012-03
BN-410-300 / 255013-03
BN-410-400 / 255014-03
BN-410-600 / 255015-03
BN-410-800 / 255016-03

20"

50 micron
100 micron
150 micron
200 micron
250 micron
300 micron
400 micron
600 micron
800 micron

SP-BN-420-50
SP-BN-420-100
SP-BN-420-150
SP-BN-420-200
SP-BN-420-250
SP-BN-420-300
SP-BN-420-400
SP-BN-420-600
SP-BN-420-800

BN-420-50 / 255255-03
BN-420-100 / 255032-03
BN-420-150 / 255033-03
BN-420-200 / 255034-03
BN-420-250 / 255035-03
BN-420-300 / 255036-03
BN-420-400 / 255037-03
BN-420-600 / 255038-03
BN-420-800 / 255039-03
