Thermally Bonded Depth Polypropylene Sediment Filters

SP-PD Series

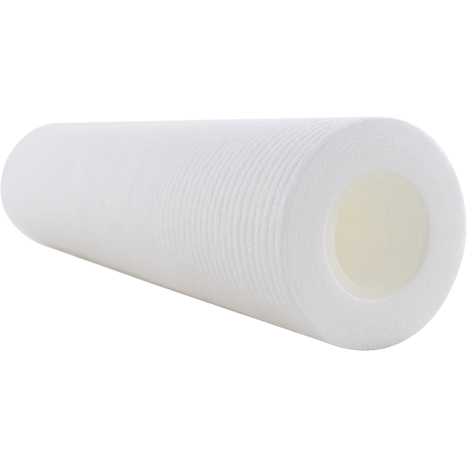

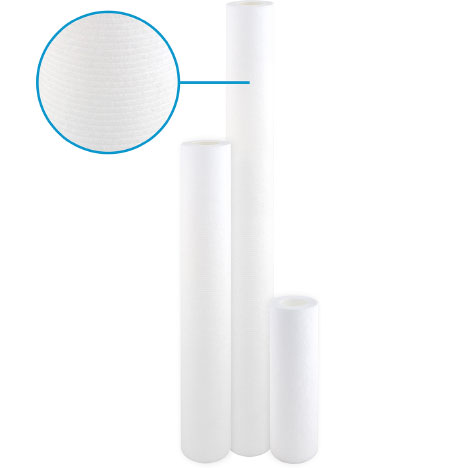

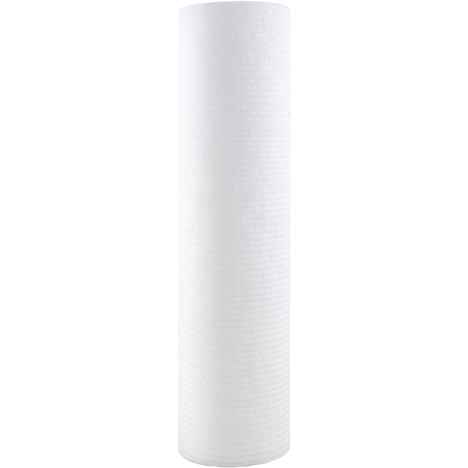

SpiroPure SP-PD series thermally bonded depth polypropylene sediment filters reduce sediment for many hot water applications, including a wide variety of industrial filtration applications. The micro-grooves provide added surface area, while the thermal bonding assists with a consistent flow rate and better filtration performance. A rigid polypropylene core assists with increased cartridge strength.
  • Reduces fine sediment particles from commercial drinking water and industrial fluid applications
  • Available in nominal sizes of: 10x2.5, 20x2.5, 30x2.5, 40x2.5, and 50x2.5
  • Available nominal filtration ratings of: 1, 5, 10, 25, and 50 microns
  • Made with thermally bonded depth polypropylene filter media
  • Temperature rating of 40°F to 140°F (4.4°C to 60°C)
Filter Details Chart
Model Number Nominal Micron Rating Pressure Drop Temperature Rating Case Quantity Case Dimensions Case Weight

2.5" x 10"

SP-PD1
SP-PD5
SP-PD10
SP-PD25
SP-PD50

1 micron
5 micron
10 micron
25 micron
50 micron

<2 psi @ 2 gpm (<0.14 bar @ 7.6 Lpm)

40°F - 140°F (4.4°C - 60°C)

24

15 1/2” x 10 3/4” x 10 1/2”

10 lbs

2.5" x 20"

SP-PD1-20
SP-PD5-20
SP-PD10-20
SP-PD25-20
SP-PD50-20

1 micron
5 micron
10 micron
25 micron
50 micron

<2 psi @ 5 gpm (<0.14 bar @ 19 Lpm

40°F - 140°F (4.4°C - 60°C)

20

20 1/4” x 14” x 11”

18 lbs

2.5" x 30"

SP-PD1-30
SP-PD5-30
SP-PD10-30
SP-PD25-30
SP-PD50-30

1 micron
5 micron
10 micron
25 micron
50 micron

<2 psi @ 7 gpm (<0.14 bar @ 26.5 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

30 1/2” x 13” x 10 1/4”

20 lbs

2.5" x 40"

SP-PD1-40
SP-PD5-40
SP-PD25-40

1 micron
5 micron
25 micron

<2 psi @ 9 gpm (<0.14 bar @ 34 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

40 1/2” x 13” x 10 1/4”

28 lbs

2.5" x 50"

SP-PD5-50

5 micron

<2 psi @ 11 gpm (<0.14 bar @ 41.5 Lpm)

40°F - 140°F (4.4°C - 60°C)

20

50 1/2” x 13 1/4” 10”

33 lbs
Cross Reference Chart
Size Rating SpiroPure Hydronix Pentek

2.5" x 10"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-PD1
SP-PD5
SP-PD10

SP-PD25
SP-PD50

SBC-25-1001
SBC-25-1005
SBC-25-1010
SBC-25-1020

PD-1-934 / 155748-43
PD-5-934 / 155749-43
PD-10-934 / 155750-43

PD-25-934 / 155751-43
PD-50-934 / 155752-43

2.5" x 20"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-PD1-20
SP-PD5-20
SP-PD10-20

SP-PD25-20
SP-PD50-20

SBC-25-2001
SBC-25-2005
SBC-25-2010
SBC-25-2020

SBC-25-2050

PD-1-20 / 155755-43
PD-5-20 / 155756-43
PD-10-20 / 155757-43

PD-25-20 / 155758-43
PD-50-20 / 155759-43

2.5" x 30"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-PD1-30
SP-PD5-30
SP-PD10-30

SP-PD25-30
SP-PD50-30

SBC-25-3001
SBC-25-3005
SBC-25-3010
SBC-25-3020

SBC-25-3050

PD-1-30 / 155762-43
PD-5-30 / 155763-43

PD-25-30 / 155765-43

2.5" x 40"

1 micron
5 micron
25 micron

SP-PD1-40
SP-PD5-40
SP-PD25-40

SBC-25-4001
SBC-25-4005

PD-1-40 / 155769-43
PD-5-40 / 155770-43
PD-25-40 / 155772-43

2.5" x 50"

5 micron

SP-PD5-50

SBC-25-5005
