Pleated Cellulose Polyester Sediment Filters

SP-EC Series

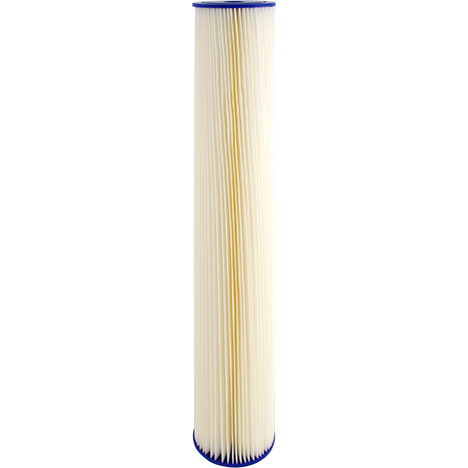

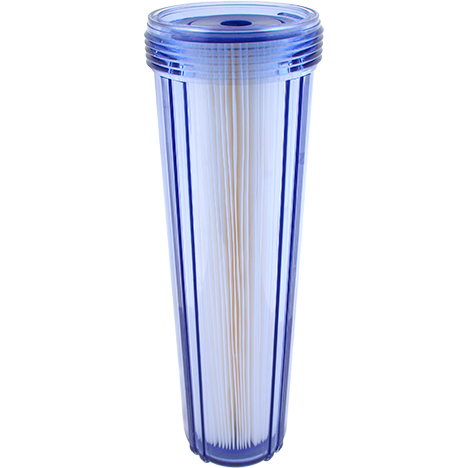

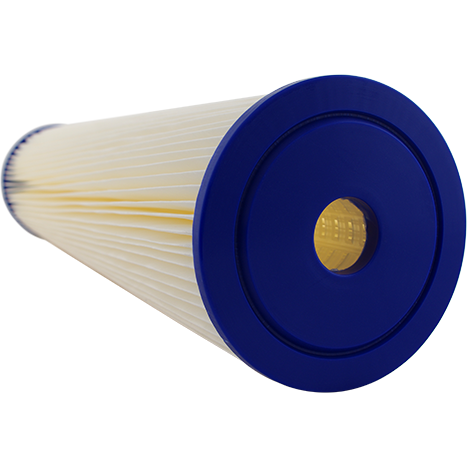

The SP-EC series of SpiroPure sediment filters offer a combination of pleated cellulose and polyester, giving the cartridge a higher wet strength. A polypropylene core and durable end caps add further cartridge stability. Pleated cellulose polyester sediment filters also provide a high flow rate and increased dirt holding capacity of sediment particles.

Reduces fine sediment particles from residential and commercial water (not recommended for well water)

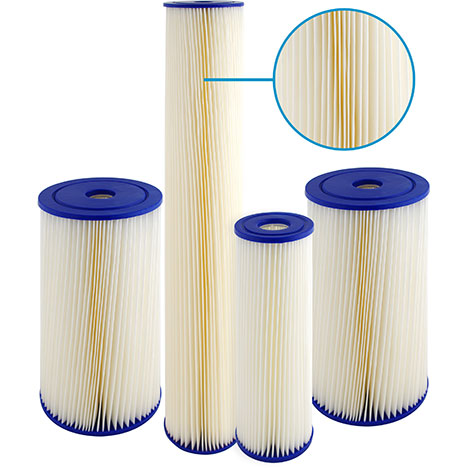

Available in nominal sizes of: 10x2.5, 10x4.5, 20x2.5, and 20x4.5
Available nominal filtration ratings of: 1, 5, 20, and 50 microns
Made with pleated cellulose polyester filter media
Temperature rating of 39°F to 125°F (4°C to 52°C)

buy online download specs

Filter Details Chart
	Model Number	Nominal Micron Rating	Pressure Drop	Temperature Rating	Case Quantity	Case Dimensions	Case Weight
2.5" x 10"	SP-EC1 SP-EC5 SP-EC20 SP-EC50	1 micron 5 micron 20 micron 50 micron	<1 psi @ 10 gpm (<0.1 bar @ 38 Lpm)	39°F - 125°F (4°C - 52°C)	24	20” x 11” x 8 1/2”	7 lbs
2.5" x 20"	SP-EC1-20 SP-EC5-20 SP-EC20-20 SP-EC50-20	1 micron 5 micron 20 micron 50 micron	<1 psi @ 10 gpm (<0.1 bar @ 38 Lpm)	39°F - 125°F (4°C - 52°C)	20	20 1/4” x 14” x 11”	11 lbs
4.5" x 10"	SP-EC1-BB SP-EC5-BB SP-EC20-BB SP-EC50-BB	1 micron 5 micron 20 micron 50 micron	<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm)	39°F - 125°F (4°C - 52°C)	8	18 1/2” x 10 1/2” 9 3/4”	8 lbs
4.5" x 20"	SP-EC1-20BB SP-EC5-20BB SP-EC20-20BB SP-EC50-20BB	1 micron 5 micron 20 micron 50 micron	<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm)	39°F - 125°F (4°C - 52°C)	6	21” x 14” x 9 1/2”	9 lbs

Cross Reference Chart
Size	Rating	SpiroPure	Pentek	Culligan
2.5" x 10"	1 micron 5 micron 20 micron 50 micron	SP-EC1 SP-EC5 SP-EC20 SP-EC50	ECP1-10 / 255481-43 ECP5-10 / 255482-43 ECP20-10 / 255483-43 ECP50-10 / 255484-43
2.5" x 20"	1 micron 5 micron 20 micron 50 micron	SP-EC1-20 SP-EC5-20 SP-EC20-20 SP-EC50-20	ECP1-20 / 255485-43 ECP5-20 / 255486-43 ECP20-20 / 255487-43 ECP50-20 / 255488-43
4.5" x 10"	1 micron 5 micron 20 micron 50 micron	SP-EC1-BB SP-EC5-BB SP-EC20-BB SP-EC50-BB	ECP1-BB / 255489-43 ECP5-BB / 255490-43 ECP20-BB / 255491-43 ECP50-BB / 255492-43	Culligan CP5-BBS
4.5" x 20"	1 micron 5 micron 20 micron 50 micron	SP-EC1-20BB SP-EC5-20BB SP-EC20-20BB SP-EC50-20BB	ECP1-20BB / 255493-43 ECP5-20BB / 255494-43 ECP20-20BB / 255495-43 ECP50-20BB / 255496-43
