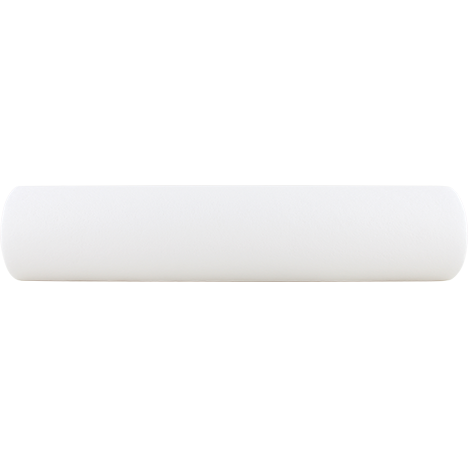

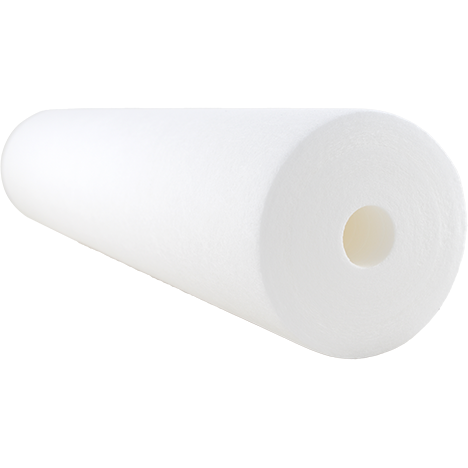

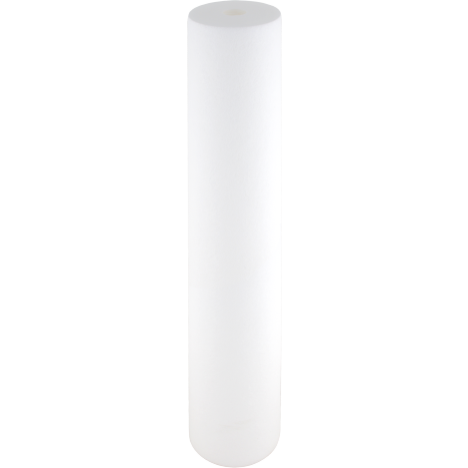

Dual-Gradient Melt-Blown Spun Polypropylene Sediment Filters

SP-DD Series

The SP-DD Series of SpiroPure sediment filters utilizes dual-gradient polypropylene filter media to provide a higher dirt holding capacity and excellent chemical resistance. The dual-gradient filtration makes them a perfect choice for removing sediment from all residential, rural, municipal, and commercial applications.
  • Reduces sediment for a variety of water filtration needs, including for all residential, rural, municipal, and commercial applications

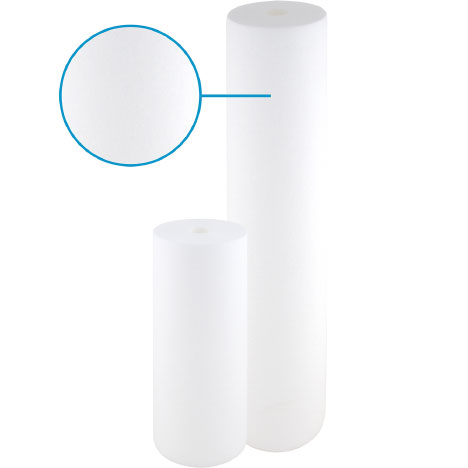

  • Available in nominal sizes of: 10x4.5 and 20x4.5
  • Available nominal filtration ratings of: 1, 5, 10, 20, 25, and 50 microns
  • Temperature rating of 40°F to 140°F (4.4°C to 60°C)
  • Dual-gradient design combines pre- and post-filter features, reducing the need for a step-down filtration system
  • A higher micron outer gradient layer reduces the load on the inner, smaller micron layer for more efficient filtration and a much higher dirt-holding capacity and cartridge life than similarly sized cartridges
buy onlineSpecifications sheet
Filter Details Chart
Model Number Nominal Micron Rating Pressure Drop Temperature Rating Case Quantity Case Dimensions Case Weight

4.5" x 10"

SP-DD-2501-BB
SP-DD-5005-BB
SP-DD-6010-BB

SP-DD-7525-BB
SP-DD-15050-BB

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

<1 psi @ 10 gpm (<0.1 bar @ 38 Lpm)

40°F - 140°F (4.4°C - 60°C)

8

18 1/2” x 10 1/2” x 9 3/4”

 9 lbs

4.5" x 20"

SP-DD-2501-20BB
SP-DD-5005-20BB
SP-DD-6010-20BB

SP-DD-7525-20BB
SP-DD-15050-20BB

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm)

40°F - 140°F (4.4°C - 60°C)

6

21” x 14” x 9 1/2”

 11 lbs
Cross Reference Chart
Size Rating SpiroPure Hydronix Pentek

4.5" x 10"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-DD-2501-BB
SP-DD-5005-BB
SP-DD-6010-BB

SP-DD-7525-BB
SP-DD-15050-BB

SDC-45-1001
SDC-45-1005
SDC-45-1010
SDC-45-1020

SDC-45-1050

DGD-2501 / 155359-43
DGD-5005 / 155357-43

DGD-7525 / 155355-43

4.5" x 20"

1 micron
5 micron
10 micron
20 micron
25 micron
50 micron

SP-DD-2501-20BB
SP-DD-5005-20BB
SP-DD-6010-20BB

SP-DD-7525-20BB
SP-DD-15050-20BB

SDC-45-2001
SDC-45-2005
SDC-45-2010
SDC-45-2020

SDC-45-2050

DGD-2501-20 / 155360-43
DGD-5005-20 / 155358-43

DGD-7525-20 / 155356-43
