Dual Purpose Sediment & Carbon Filters

SP-C Series

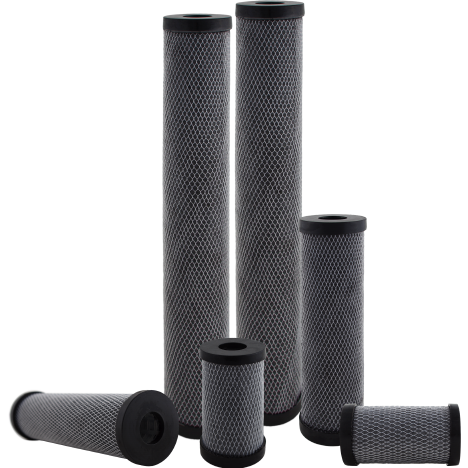

The SP-C series of carbon filters by SpiroPure utilize carbon filter media around a polypropylene core, creating a dual-purpose cartridge that captures sediment while reducing chlorine taste & odor from your water. External netting provides greater cartridge strength and a higher dirt holding capacity. Carbon wrap filters are great for a variety of residential applications, as well as a polishing filter when used in process or closed-loop streams.

Reduces fine sediment particles and chlorine taste & odor from tap water
Available in nominal sizes of: 5x2.5, 10x2.5, 10x4.5, 20x2.5, and 20x4.5
Available nominal filtration ratings of: 1 and 5 microns
Made with carbon-impregnated non-cellulose pleated polyester filter media
Temperature rating of 40°F to 125°F (4°C to 52°C)

buy online Specifications Sheet

Filter Details Chart
	Model Number	Nominal Micron Rating	Temperature Rating	Case Quantity	Case Dimensions	Case Weight
2.5" x 5"	SP-C1-478	5 micron	40°F - 125°F (4°C - 52°C)	24	15 3/4” x 11 1/4” x 5 1/2”	7 lbs
2.5" x 10"	SP-C8 SP-C1	1 micron 5 micron	40°F - 125°F (4°C - 52°C)	24	20” x 11” x 8”	12 lbs
2.5" x 20"	SP-C1-20	5 micron	40°F - 125°F (4°C - 52°C)	14	21” x 18 1/4” x 5 1/2”	11 lbs
4.5" x 10"	SP-C1-BB	5 micron	40°F - 125°F (4°C - 52°C)	8	19 1/2” x 11” x 10 1/2”	12 lbs
4.5" x 20"	SP-C1-20BB	5 micron	40°F - 125°F (4°C - 52°C)	6	21” x 15” x 10 1/4”	16 lbs

Cross Reference Chart
Size	Rating	SpiroPure	Pentek	Culligan
2.5" x 5"	5 micron	SP-C1-478	C2 / 155022-43
2.5" x 10"	1 micron 5 micron	SP-C8 SP-C1	C8 / 155220-43 C1 / 155002-43 CS1 / 155528-43	D-10A
2.5" x 20"	5 micron	SP-C1-20	C1-20 / 155597-43
4.5" x 20"	5 micron	SP-C1-20BB	C1-20BB / 155651-43
