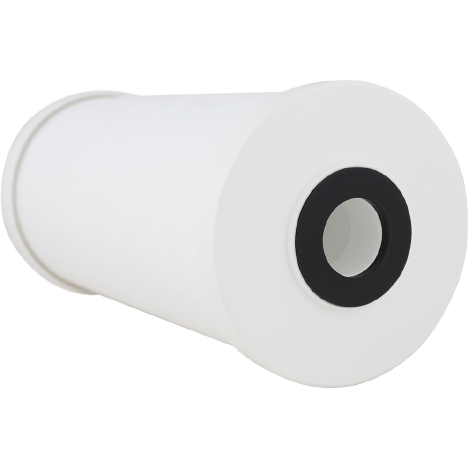

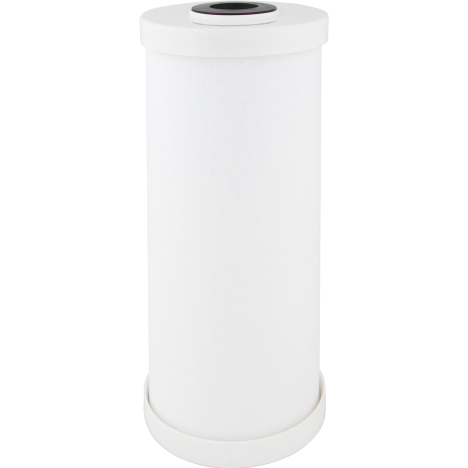

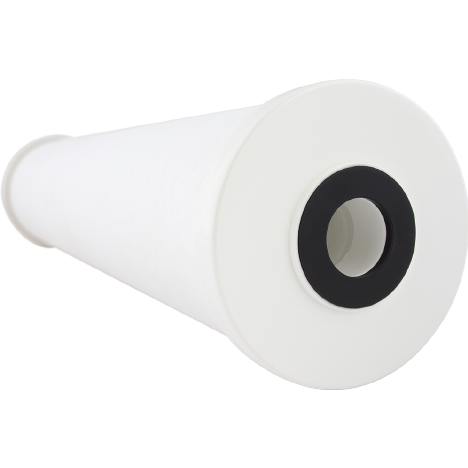

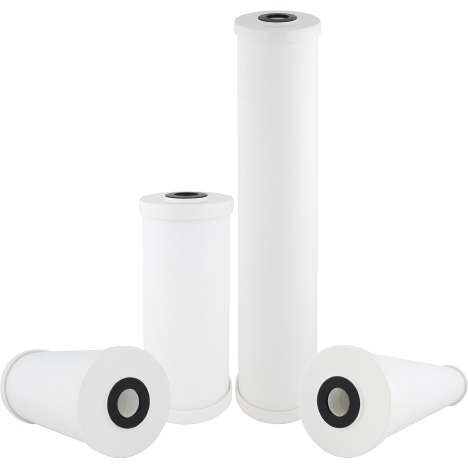

Radial Flow Carbon Filters

SP-RFC Series

The SP-RFC Series of carbon filters by SpiroPure offer a radial flow design, which combines the benefits of granular activated carbon filtration, such as a high flow rate with a low pressure drop, with the added benefit of a reduction of carbon fibers released by the cartridge. This is due to the unique design of a porous polyethylene outer shell and polypropylene core sandwiching a layer of GAC filter media. SP-RFC cartridges are an ideal choice for point-of-entry (POE) and other high flow rate applications.

Made with coconut shell radial flow granular activated carbon
Coconut shell carbon is recognized as the best filter media for producing better tasting drinking water
Offers a porous polyethylene shell and a durable polypropylene core and end caps
Available in nominal sizes of: 10x4.5 and 20x4.5
Available nominal filtration ratings of: 25 microns
Temperature rating of 40°F to 125°F (4°C to 52°C)

buy online Specifications Sheet

Filter Details Chart
	Model Number	Nominal Micron Rating	Temperature Rating	Case Quantity	Case Dimensions	Case Weight
2.5" x 10"	SP-RFC-10	25 micron	40°F - 125°F (4°C - 52°C)	12	13” x 10” x 10”	11 lbs
2.5" x 20"	SP-RFC-20	25 micron	40°F - 125°F (4°C - 52°C)	6	21” x 10” x 7”	11 lbs
4.5" x 10"	SP-RFC-BB	25 micron	40°F - 125°F (4°C - 52°C)	6	15” x 10 3/4” x 10 1/2”	12 lbs
4.5" x 20"	SP-RFC-20BB	25 micron	40°F - 125°F (4°C - 52°C)	4	21” x 10” x 10”	17 lbs

Cross Reference Chart
Size	Rating	SpiroPure	Pentek	Hydronix	Culligan
2.5" x 10"	25 micron	SP-RFC-10	RFC-93 / 155063-43	SDP-2510
2.5" x 20"	25 micron	SP-RFC-20	RFC-20 / 155065-43	SDP-2520
4.5" x 10"	25 micron	SP-RFC-BB	RFC-BB / 155141-43	SDP-4510	RFC-BBSA
4.5" x 20"	25 micron	SP-RFC-20BB	RFC20-BB / 155247-43	SDP-4520
